See s.80
NOTE: approvals apply to specific configurations/sizes only.

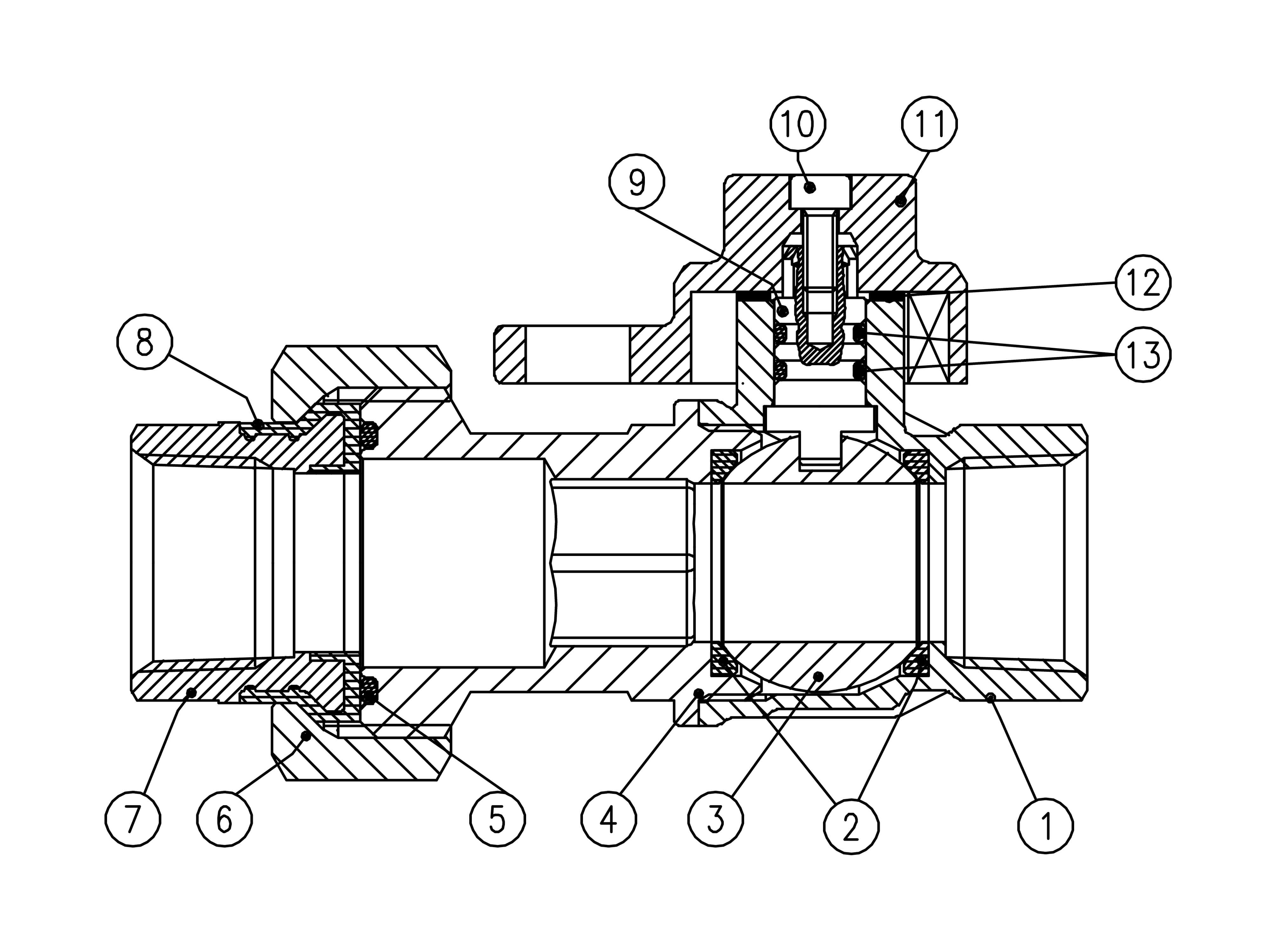

Part description | Quantity | Part Material |
---|---|---|
Unplated body
|
1
|
CW617N
|
Seat
|
2
|
PTFE
|
Chrome plated ball
|
1
|
CW617N
|
Unplated spacer
|
1
|
CW617N
|
Tail piece O-Ring
|
1
|
FPM
|
Unplated nut
|
1
|
CW617N
|
Dielectric tail piece
|
1
|
CW617N
|
Insulation
|
1
|
Polyamide
|
Unplated stem O-ring design
|
1
|
CW617N
|
Stainless steel screw
|
1
|
1.4301 / AISI 304
|
WARNING: This product can expose you to chemicals including lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ask for additional information on the whole range of RuB products and consult with your supplier for special applications.
