H2 READY
roduct approved in EU acc.to EN331 (sizes ¼” to 2”) for the 1st, 2nd and 3rd gas families, therefore compatible with hydrogen use up to 50% in the gas mixture,
as established in the 1st gas family of the EN437 (ref. G110)

Technical sheet

Permetti download anche all'utente anonimo

Off

Request info

Technical Info

24h 100% seal test guaranteed
Dual sealing system allows valve to be operated in either direction making installation easier
No metal-to-metal moving parts
No maintenance ever required
T-Handle clearly shows ball position
Silicone-free lubricant on all seals
Chrome plated brass ball for longer life
Handle stops on body to avoid stresses at stem

Hot forged sand blasted, external nickel plated brass body and cap sealed with Loctite® or equivalent thread sealant
Finest brass according to EN 12165 and EN 12164 specifications

Aluminum T-handle up to 1”, Geomet® carbon steel T-handle with thick PVC dip coating over 1”
Handle removable with valve in service
WARNING: do not exceed reasonable temperature and/or electrical load

Blowout-proof nickel plated brass stem
Maintenance- free, double FPM O-rings at the stem for maximum safety

40 bar (600 PSI) non-shock cold working pressure
-40°C to +170°C (-40°F to +350°F)
For use with dangerous fluids temperature rating is -20°C +60°C and pressure rating is 5 bar
AS4617 Limitation for GAS: 2100 Kpa rated working pressure and 0°C / +60°C temperature
WARNING: freezing of the fluid in the installation may severely damage the valve

Pure PTFE self-lubricating seats with flexible-lip design

Stem extension
Oval lockable handle
Stainless steel handle 1.4016/AISI 430
Patented locking device
Stubby handle
RuB memory stop designed to be installed with our stubby handle
Geomet® carbon steel handle with thick PVC dip coating

EN10226-2, ISO 7/1, BS 21 BSPT taper female by female threads

Full port to DIN 3357 for maximum flow

Stainless steel ball 1.4401/AISI 316
Glass filled PTFE seals
Custom design

Assessment according to Pressure Equipment Directive 2014/68/UE module B+D by ICIM (0425)

The Australian Gas Association (Australia)
Factory Mutual (United States)
BSI Group (United Kingdom)
RoHS Compliant (EU)
EAC – Declaration of conformity (Russia, Kazakhstan, Belarus)

NOTE: approvals apply to specific configurations/sizes only.

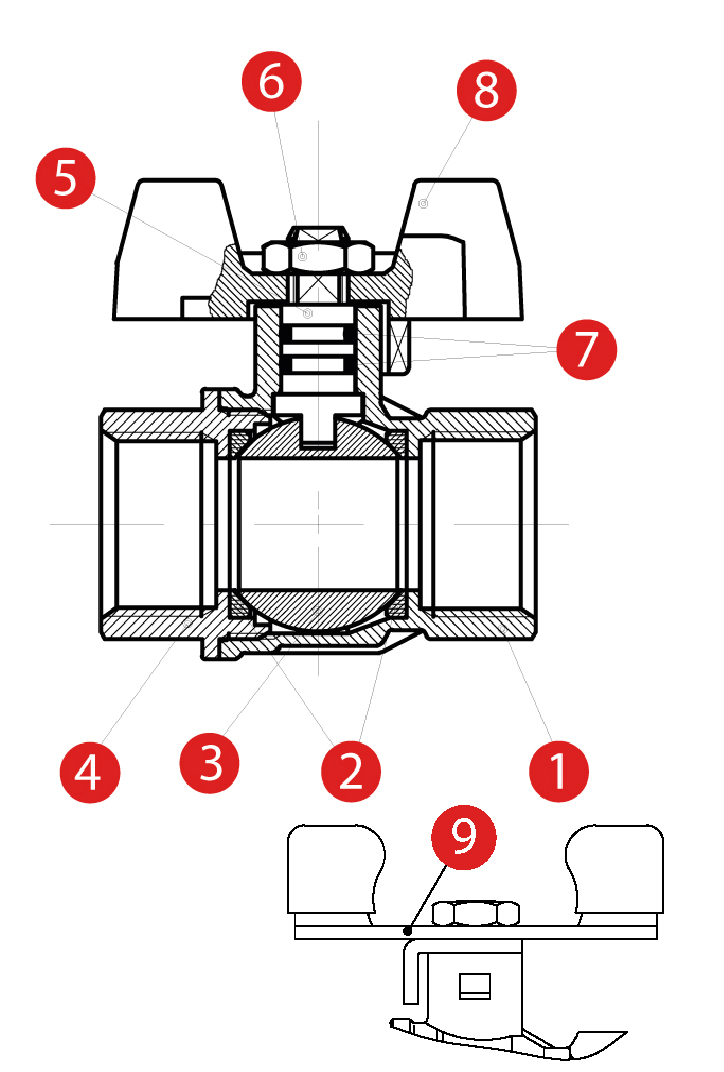

Part description	Quantity	Part Material
Nickel plated body (External nickel plated, unplated inside)	1	CW617N
Seat	2	PTFE
Chrome plated ball	1	CW617N
Nickel plated end-cap (external nickel plated, unplated inside)	1	CW617N
Nickel plated stem O-ring design	1	CW617N
Geomet® nut	1	C4C (EN10263-2)
O-Ring	2	FPM
Yellow PVC T-handle	1	EN AC-46100
Yellow PVC coated Geomet® steel T-handle	1	DD11 (EN10111)

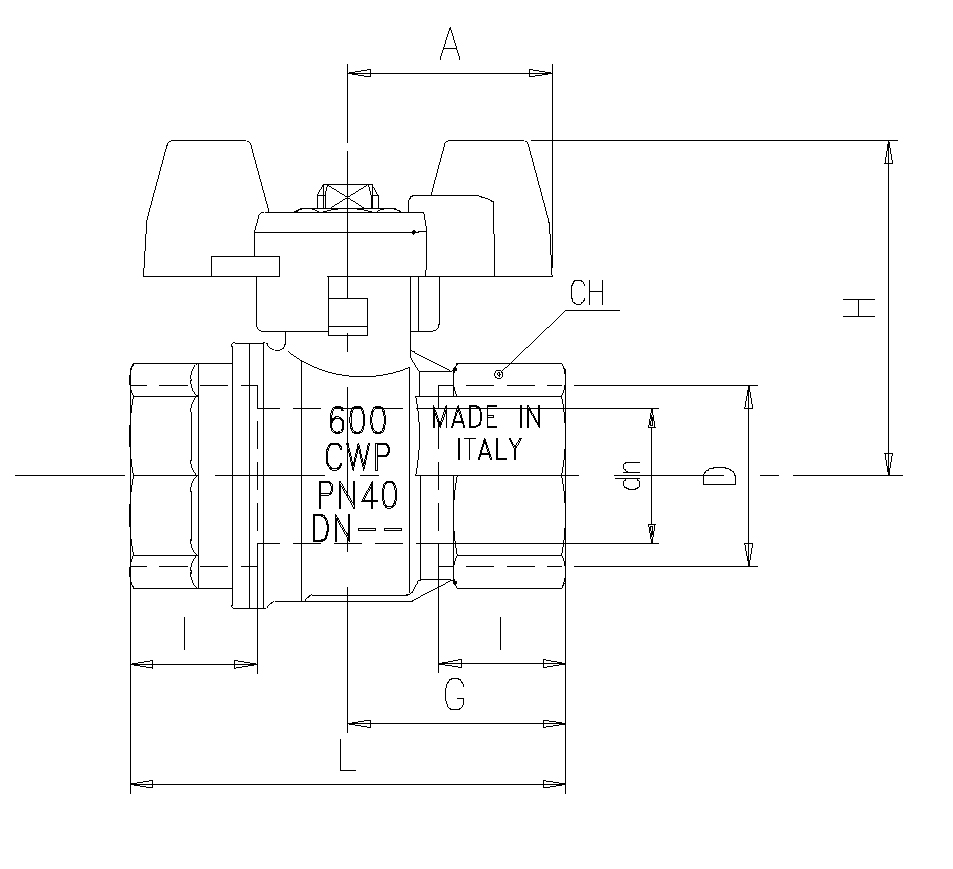

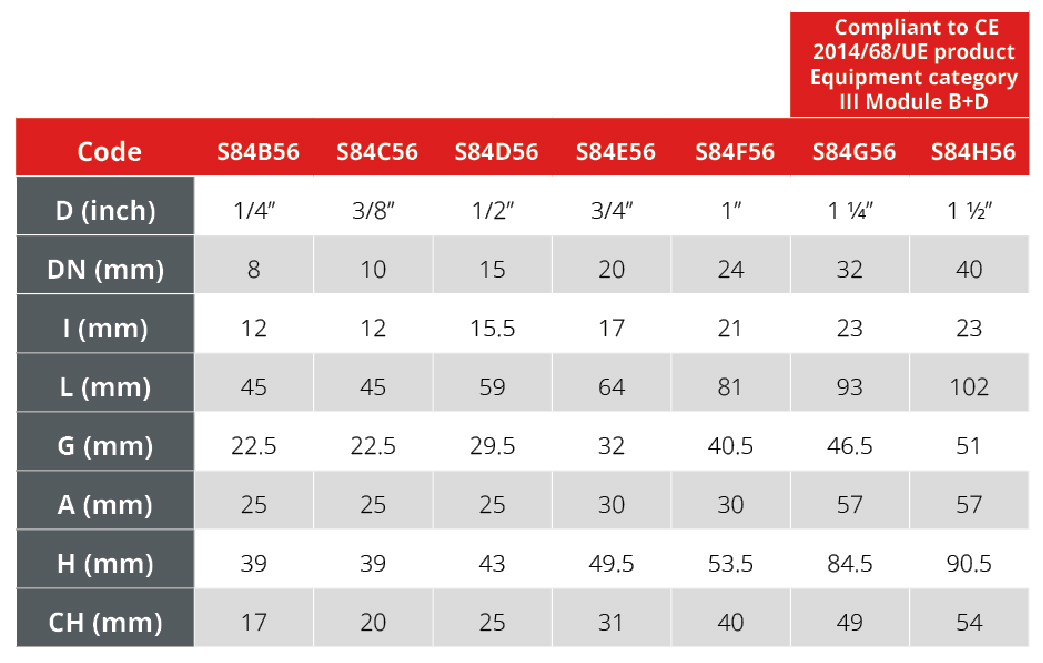

DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4.
Ball valves are marked CE on body from 1 1/4” to 1 1/2”:
CE 0425 cat IIIB+D PS: 5 GAS TS1:-20°C TS2: +60°C

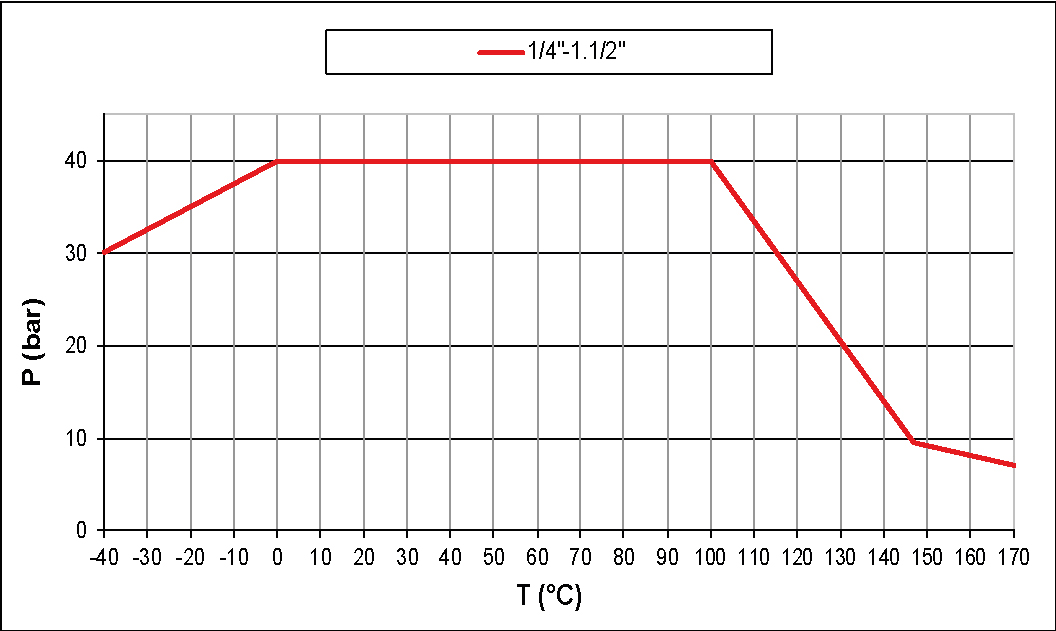

Pressure-temperature chart

AS4617 limitations for GAS: 2100 Kpa up to 2” and 1500 Kpa from 2.1/2” to 4” rated working pressure and 0°C +60°C temperature

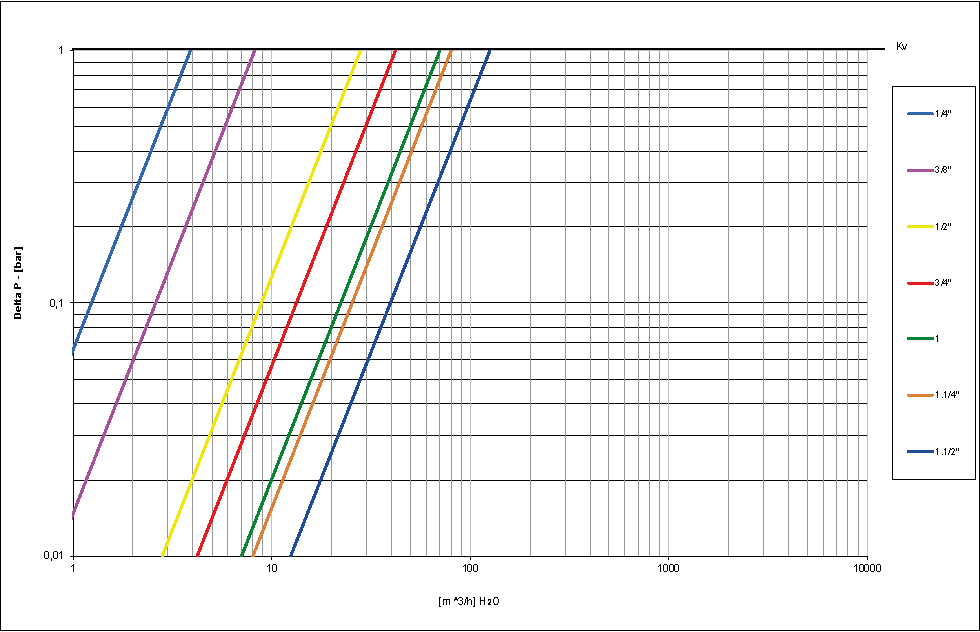

Pressure drop chart

WARNING: This product can expose you to chemicals including lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
