• 24h 100% seal test guaranteed
• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Handle stops on body to avoid stress at stem
• Chrome plated brass ball for longer life with rinse hole

• Full port to DIN 3357 for maximum flow

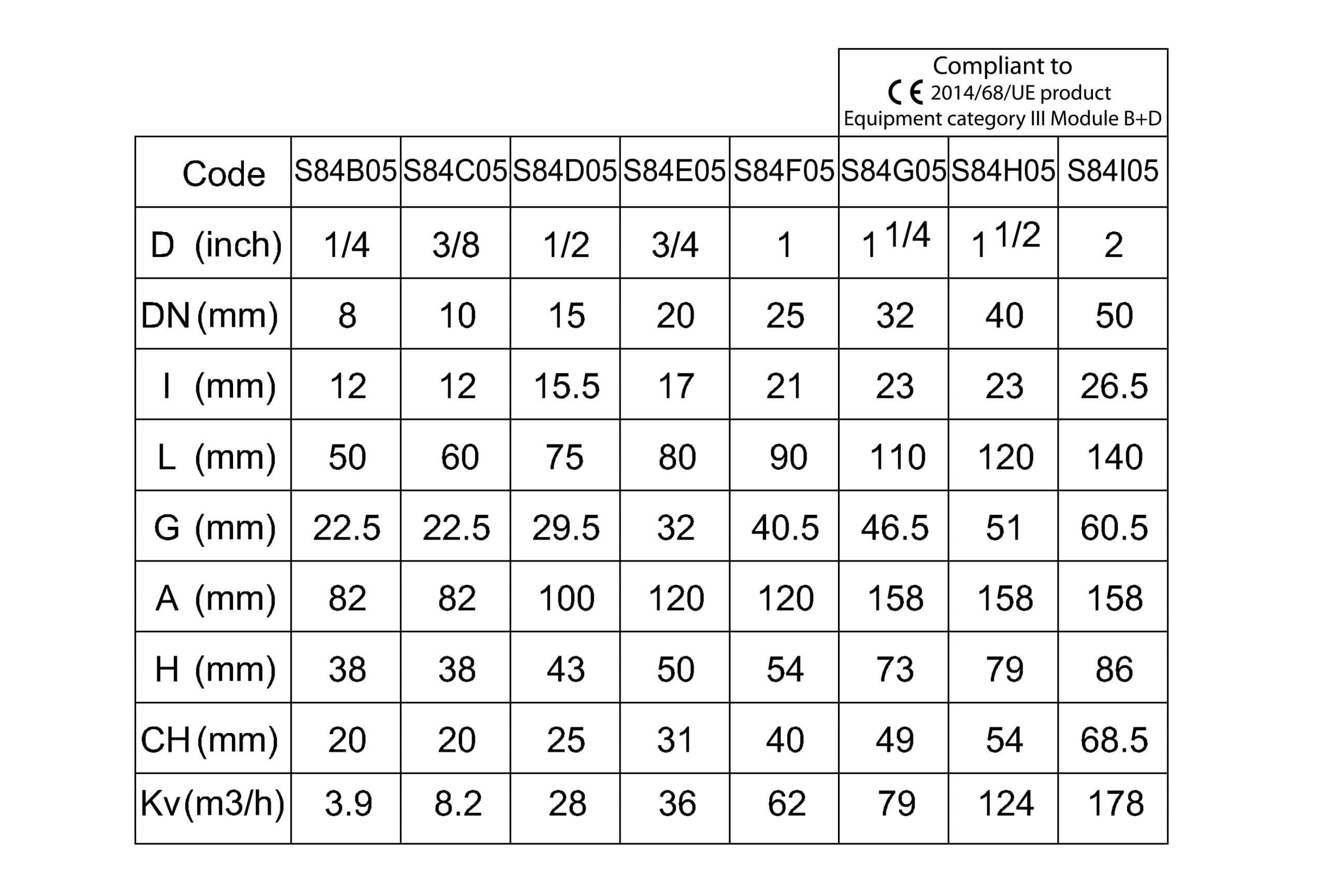

• Valve length according to DIN 16722 M3 for sizes from 3/8” to 2” (DN10 to DN50). Size 1/4” (DN 8) complies to DIN 3202 M3.
• Finest brass according to EN 12165 and EN 12164 specifications
• Hot forged sand blasted external nickel plated brass body and cap sealed with Loctite® or equivalent threads sealant

• Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
• Handle removable with valve in service
• WARNING: do not exceed reasonable temperature and/or electrical load

• Blowout-proof nickel plated brass stem
• Maintenance-free, double FPM O-rings at the stem for maximum safety

• 600 PSI (40 bar)  non-shock cold working pressure
• -40°F to +350°F (-40°C to +170°C)
• For use with dangerous fluids temperature rating is -4°F +140°F (-20°C +60°C) and pressure rating is 72 PSI (5 bar) / HTB Class B 0,1
• WARNING: freezing of the fluid in the installation may severely damage the valve

• Pure PTFE self-lubricating seats with flexible-lip design

• Stem extension
• T-handle
• Oval lockable handle
• Stainless steel handle (1.4016/AISI 430)
• Patented locking device
• Stubby handle
• RuB memory stop designed to be installed with our stubby handle

• EN 10226-1, ISO 7/1, ISO 228 parallel female by female threads

• Stainless steel ball (1.4401/AISI 316)
• Glass filled PTFE seals
• Custom design

• Assessment according to Pressure Equipment Directive 2014/68/UE module B+D by ICIM (0425)

• GOST-R (Russia)
• BSI Group (United Kingdom)
• RoHS Compliant (EU)
• DIN-DVGW (Germany)

  NOTE: approvals apply to specific configurations/sizes only.
