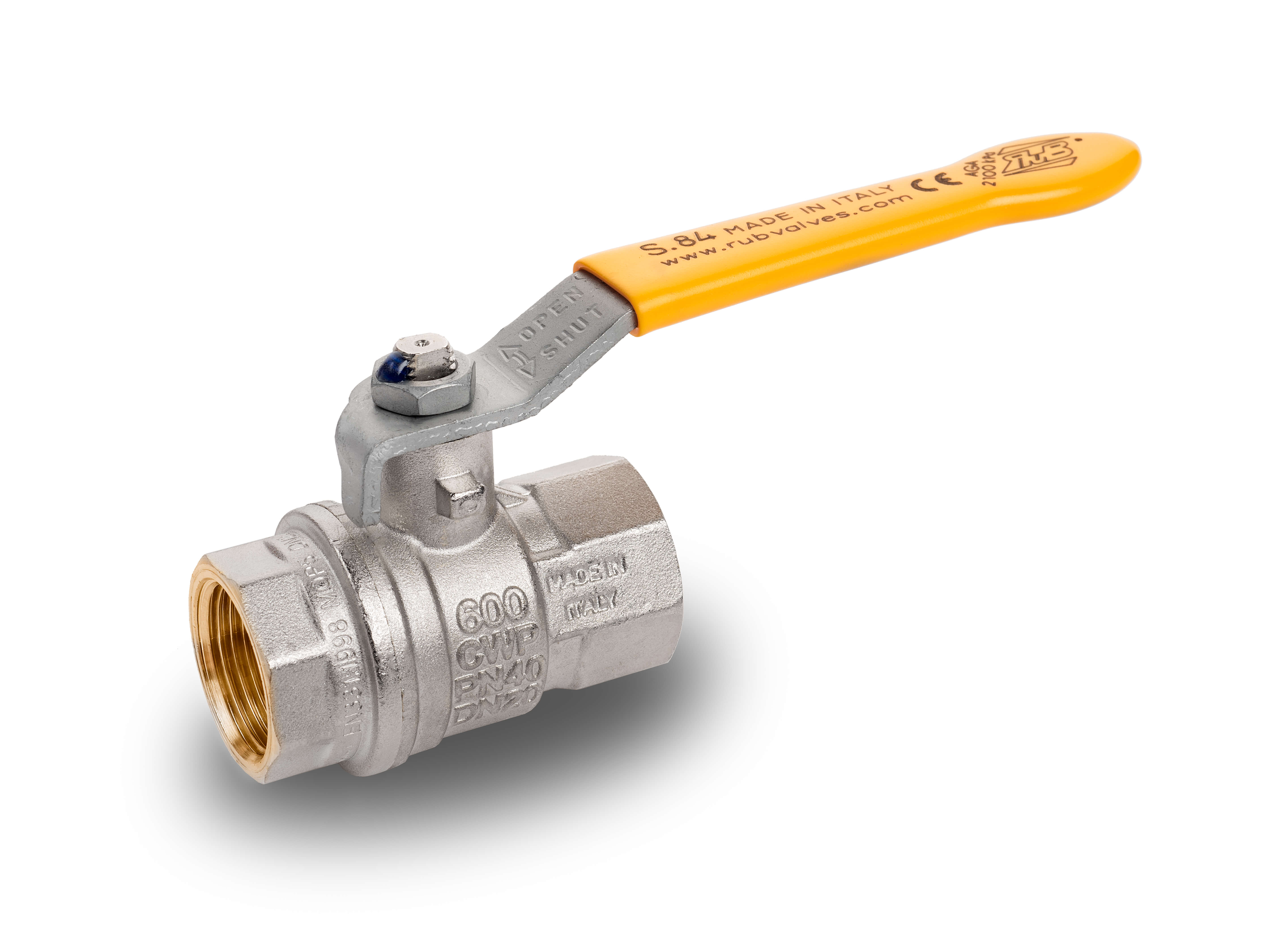

Technical Info
- 24h 100% seal test guaranteed
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- No maintenance ever required
- Handle clearly shows ball position
- Silicone-free lubricant on all seals
- Handle stops on body to avoid stress at stem
- Chrome plated brass ball for longer life
- Hot forged sand blasted, external nickel plated brass body and cap sealed with Loctite® or equivalent thread sealant
- Finest brass according to EN 12165 and EN 12164 specifications
- Geomet® carbon steel handle with thick PVC dip coating. Handle coating offers both thermal and electrical protection
- Handle removable with valve in service
- WARNING: do not exceed reasonable temperature and/or electrical load
- Blowout-proof nickel plated brass stem
- Maintenance-free, double FPM O-rings at the stem for maximum safety
- 40 bar (600 PSI) up to 2″, 30 bar (450 PSI) over 2″ non-shock cold working pressure
- -40°F to +350°F (-40°C to +170°C)
- For use with dangerous fluids temperature rating is -4°F /+140°F (-20°C /+60°C) and pressure rating is 72psi (5 bar)
- AS4617 Limitation for GAS: 304psi (2100 Kpa) up to 2″ and 217 psi (1500 Kpa) from 2.1/2″ to 4″ rated working pressure and +32°F/+140°F (0°C/ +60°C) temperature
- WARNING: freezing of the fluid in the installation may severely damage the valve
- Pure PTFE self-lubricating seats with flexible-lip design

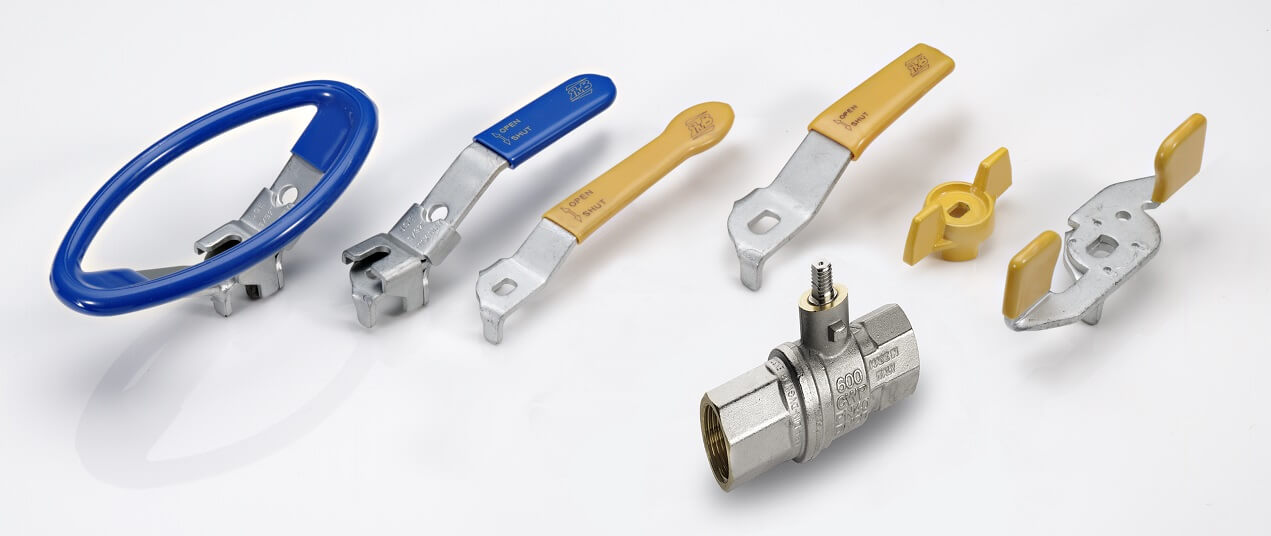

- Stem extension
- T-handle (for sizes 1/4" through 1 1/4")
- Oval lockable handle up to 2″, round over 2″
- Stainless steel handle (1.4016/AISI 430)
- Patented locking device for valves up to 4″
- Male by female threads
- Stubby handle
- RuB memory stop designed to be installed with our stubby handle
- EN10226-2, ISO 7/1, BS 21 BSPT taper female by female threads
- Full port to DIN 3357 for maximum flow
- Stainless steel ball (1.4401/AISI 316)
- Glass filled PTFE seals
- Custom design
- Assessment according to Pressure Equipment Directive 2014/68/UE module B+D by ICIM (0425)
- The Australian Gas Association (Australia)
- Factory Mutual (United States)
- GOST-R (Russia)
- BSI Group (United Kingdom)
- RoHS Compliant (EU)
NOTE: approvals apply to specific configurations/sizes only.
1.1/4” – 2” hollow ball
| Part description | Quantity | Part Material |
|---|---|---|
|
Nickel plated body (external nickel plated, unplated inside up to 2")
|
1
|
CW617N
|
|
Seat
|
2
|
PTFE
|
|
Chrome plated ball
|
1
|
CW617N
|
|
Nickel plated end-cap (external nickel plated, unplated inside up to 2")
|
1
|
CW617N
|
|
Nickel plated stem O-ring design
|
1
|
CW617N
|
|
Geomet® nut
|
1
|
CB4FF (EN10263-2)
|
|
O-Ring
|
2
|
FPM
|
|
Yellow PVC coated Geomet® steel handle
|
1
|
DD11 (EN10111)
|
DN shows the nominal flow diameter. Actual flow diameter complies with full port DIN 3357 part 4. Stem configuration of valves over 2” is slightly different. Ball valves are marked CE on handle from 1.1/4” to 2”, on body over 2” as follow : CE 0425 cat IIIB+D PS: 5 GAS TS1: -20°C TS2: +60°C
Pressure-temperature chart
AS4617 Limitation for GAS: 304psi (2100 Kpa) up to 2″ and 217 psi (1500 Kpa) from 2.1/2″ to 4″ rated working pressure and +32°F/+140°F (0°C/ +60°C) temperature
Pressure drop chart
WARNING: This product can expose you to chemicals including lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Technical material
Ask for additional information on the whole range of RuB products and consult with your supplier for special applications.
