This newly engineered valve features all the good
characteristics of the s.31 RuB mini valve, in particular:
Document
Technical Info
- 100% seal test guaranteed in according to EN12266-1 RATE A in either direction
- Compatible with most industrial fluids including those too viscous for pilot operated valves
- Dual sealing system allows valve to be operated in either direction making installation easier
- No metal-to-metal moving parts
- No maintenance ever required
- Silicone-free lubricant
- Chrome plated ball for longer life
- Can operate also in vacuum line
- NPT taper ANSI B.1.20.1 threads
- Finest brass according to EN 12165 and EN 12164 specifications
- Strong one piece body construction
- Blowout-proof nickel plated brass stem
- Maintenance-free, double FPM O-rings at the stem for maximum safety
- Shell rating: 600 PSI (40 bar) non-shock cold working pressure
- Seat rating: Delta P max permissible 230 PSI (16 bar)
- -4°F to +250°F (-20°C to +120°C)
- WARNING: freezing of the fluid in the installation may severely damage the valve
- Pure PTFE self-lubricating seats
- ISO 7/1, BS 21 BSPT taper threads
- EN 10226-1, ISO 228 parallel female by female threads
- The product meets the requirements of PED Directive 2014/68/UE and according to art.4 par.3, it does not require CE marking
- RoHS Compliant (EU)
NOTE: approvals apply to specific configurations/sizes only.
| Part description | Quantity | Part Material |
|---|---|---|
|
Sand blasted unplated NPT body
|
1
|
CW617N
|
|
Unplated retainer nut
|
1
|
CW617N
|
|
Retainer seat
|
1
|
PTFE
|
|
Chrome plated ball
|
1
|
CW617N
|
|
Body seat
|
1
|
PTFE
|
|
Unplated stem O-Ring design
|
1
|
CW617N
|
|
O-Ring
|
2
|
FPM
|

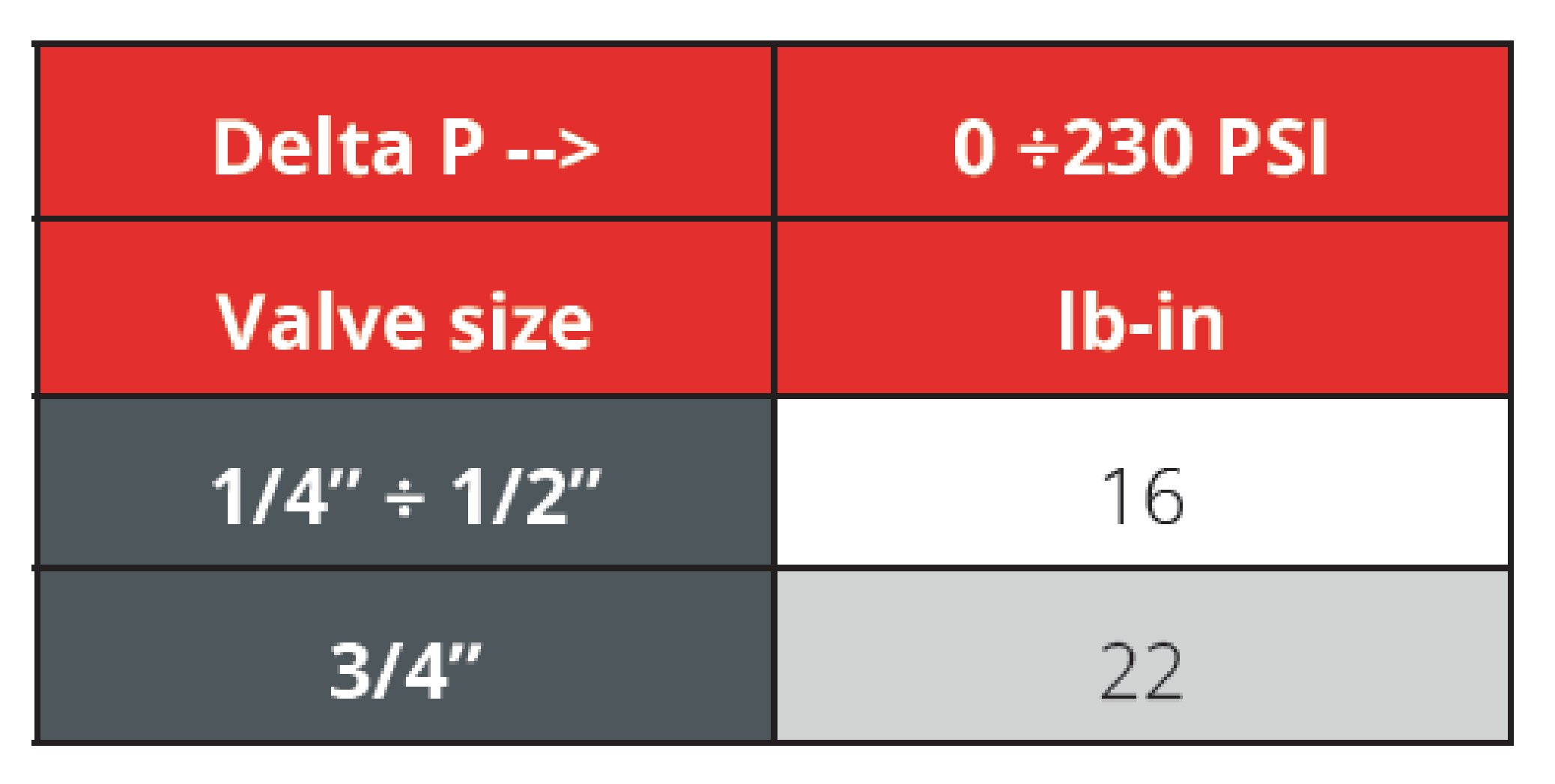

Torque for actuator sizing in-lb
Torque correction factors
Valve torque can vary according to operating frequency, temperature and friction characteristics of the media. If media has more or less friction than water, multiply torque by the following factors.
| Lubricating oils or liquids | 0.8 |
| Dry gases, natural gas | 1.5 |
| Slurries or liquids bearing abrasive particles | 1.5÷2.5 |
Pressure-temperature chart
Pressure drop chart
WARNING: This product can expose you to chemicals including lead which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Technical material
Document
Ask for additional information on the whole range of RuB products and consult with your supplier for special applications.
