• Each valve is seal tested for maximum safety
• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• No maintenance ever required
• Handle clearly shows ball position
• Silicone-free lubricant on all seals
• Chrome plated brass ball for longer life

• One piece drawn sand blasted brass body incorporating stem neck which provides excellent guidance of the stem
• Finest brass according to EN 12164 specification

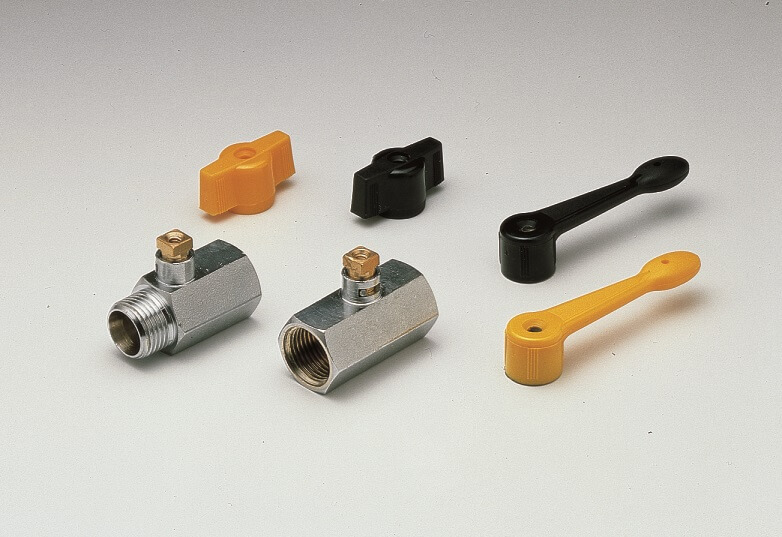

• Lever and T-handle clearly show ball position
• Nylon back lever or T-handle removable with valve in service

• Maintenance-free, double FPM O-rings at the stem for maximum safety

• 200 PSI non-shock cold working pressure
• -4°F/ +200°F
• WARNING: freezing of the fluid in the installation may severely damage the valve

• Pure PTFE self-lubricating seats with flexible-lip design

• Male by female threads
• Screw driver or wrench operated
• Yellow lever or T-handle
• ISO 228 parallel threads

• NPT taper ANSI B.1.20.1 female by female threads

• GOST-R (Russia)
• RoHS Compliant (EU)

  NOTE: approvals apply to specific configurations/sizes only.
