Understanding how ball valves with spring return improve safety, prevent fluid spillage and support reliable operations
Preventing accidental leakage and ensuring operational safety are essential requirements across industrial, commercial and public environments. In applications ranging from water networks to fuel handling systems, a valve left open unintentionally can result in product loss, contamination issues and operational damage.
Ball valves with spring return provide an effective automatic shut-off solution for systems where continuous operator supervision cannot always be guaranteed. In this article, we will explore how ball valves with spring return work and the advantages they bring to fluid control systems, especially in installations where safety and dependable shut-off performance are essential.
We will also look at how the RuB S.95 ball valve with spring return addresses these operational needs, offering a robust and reliable solution already used in a variety of applications worldwide.
What is a ball valve with spring return?
A ball valve with spring return is a quarter-turn shut-off device that combines standard ball valve technology with an automatic closing mechanism. Its key feature is a robust which ensures auto shut-off with max pressure in the valve immediately after manual operation is released.
During operation, rotating the handle by 90° aligns the internal bore of the ball with the pipeline, allowing media to pass through the system. When the handle is let go, the stored energy in the spring automatically drives the ball back to its original shut-off position, stopping the flow.
Primary benefits of ball valves with spring return
As industries continue to prioritize environmental protection and operational efficiency, automatic shut-off valve systems are increasingly adopted in applications where an unintentionally open valve could generate operational, economic or environmental consequences.
One of the most relevant advantages is the reduction of accidental fluid release. In manually operated systems, valves may remain open after use due to operator oversight, leading to product loss, contamination risks, equipment degradation and higher operating costs. Automatic closure helps ensure a controlled shut-off condition, particularly when handling fuels, chemicals, lubricants, miscellaneous industrial fluids or other sensitive media.
Beyond leakage prevention, spring return ball valves contribute significantly to operational safety by reducing reliance on manual intervention. In high-traffic industrial environments or installations with public or shared access, human error can compromise system integrity and create unsafe conditions, especially in fuel handling systems, loading and unloading stations, mobile units and utility distribution points.
From a resource management perspective, automatic return functionality also supports more efficient fluid usage in semi-supervised or unattended systems. By ensuring that the valve returns to a closed position after each operation, it helps prevent unintended discharge and improves overall control in applications such as service stations, dispensing systems and public utility networks.
Choose RuB ball valves with spring return for your application
RuB, Inc. is the North American distribution company for RuB ball valves in the United States and Canada. All RuB valves are 100% Made in Italy by the Italian HQ based in Mazzano, Brescia. The company provides valve and actuator solutions for gas, water, air, oils and industrial fluids, supporting OEMs, distributors and manufacturers with reliable technology for both industrial and residential applications.
High temperature resistance, chromed metal components, corrosion resistance, maximum output force and long-lasting durability are among the key features of the RuB spring return valve range.

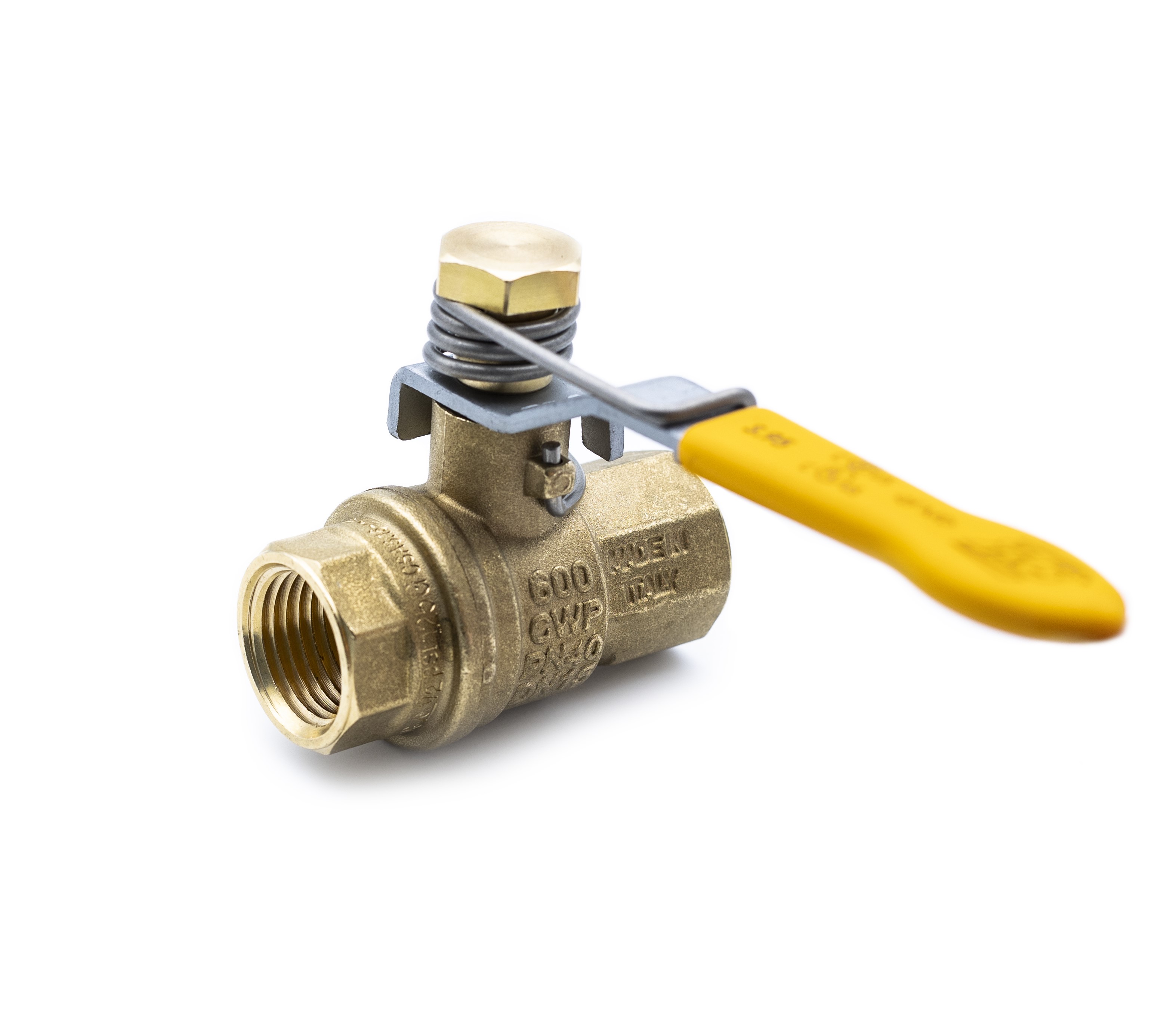

The S.95 series provides a configuration with ANSI B1.20.1 standards. It is designed to ensure secure integration into piping systems where automatic shut-off and operator safety are critical. The series supports working pressures up to 600 PSI (40 bar) and is available in sizes from ¼” to 2”.
For ISO threaded installations, the S.84 series is used in standard applications requiring reliable shut-off, with sizes from 1/4” to 2” and working pressures up to 40 bar (600 PSI). For heavier-duty applications, the K.60 series offers higher pressure resistance and mechanical strength, with the same size range and operating up to 65 bar (940 PSI) up to 1” and 40 bar (600 PSI) above 1”.
Across the RuB spring return range, custom design and material options for the ball and handle are available on request to meet specific application requirements and operating conditions.
If you are looking for a reliable solution to improve fluid safety and prevent leakage, contact RuB, Inc. to discover the most suitable ball valve for your application.
